Corrugated Display Boxes
Corrugated display boxes ship as a sealed carton. A perforated panel then tears away, and the box becomes a shelf display. Hale Path Packaging builds them for brands selling through US retailers, alongside our custom collectible figure boxes.
Trusted by 10,000+ awesome brands

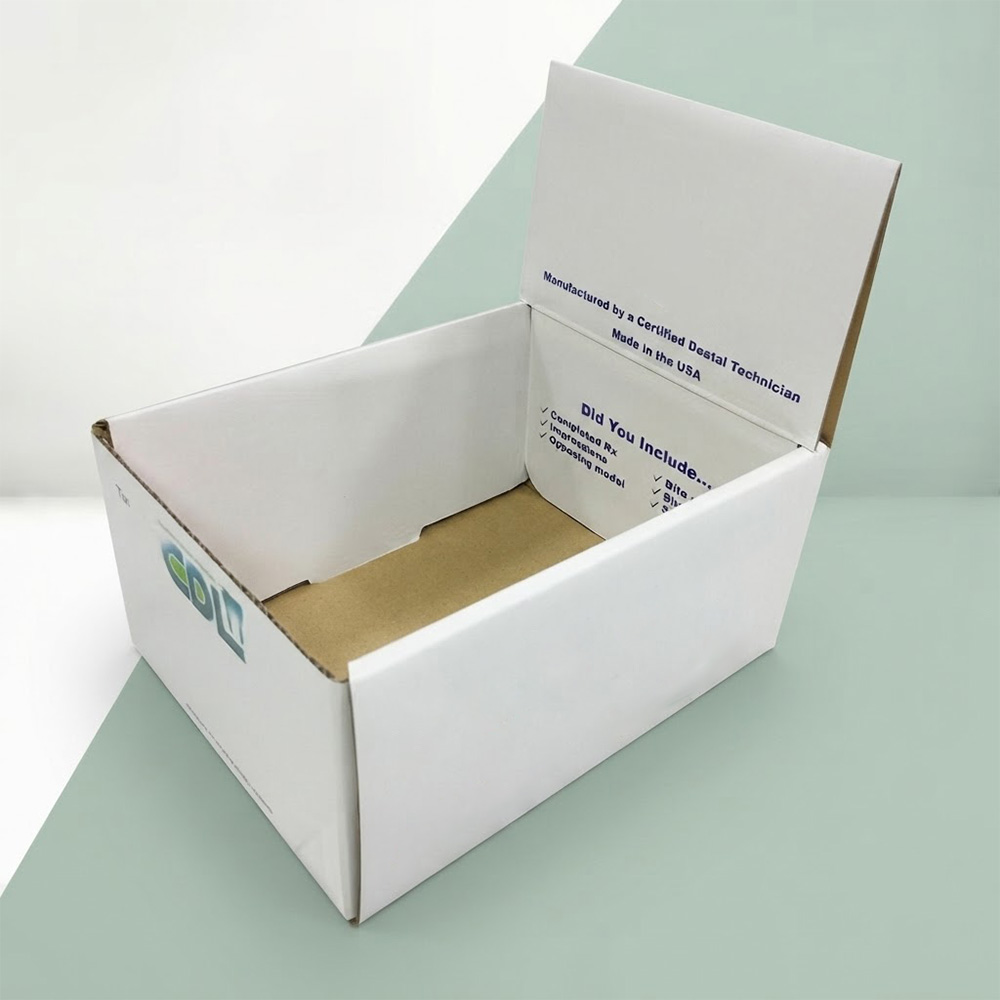

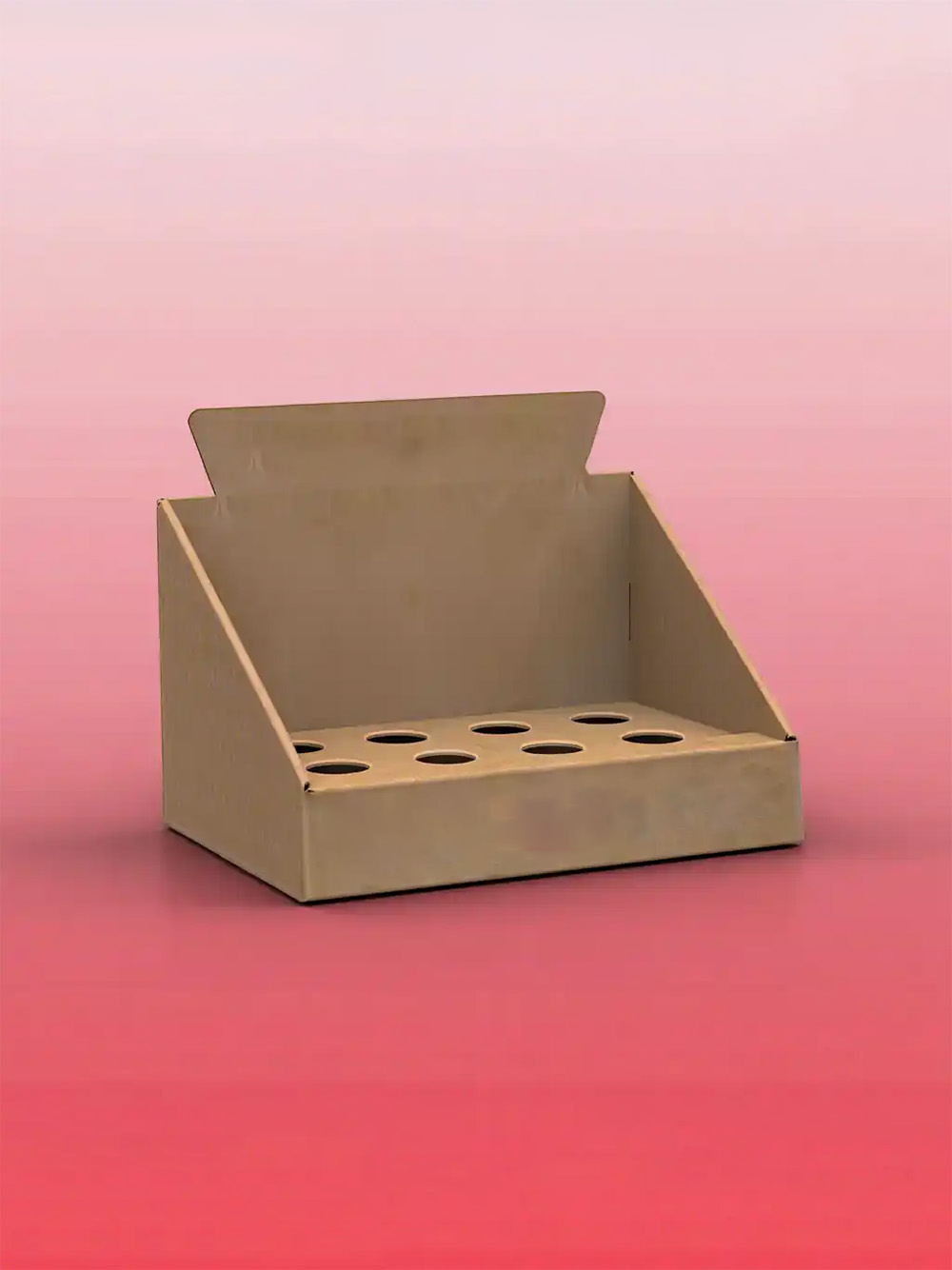

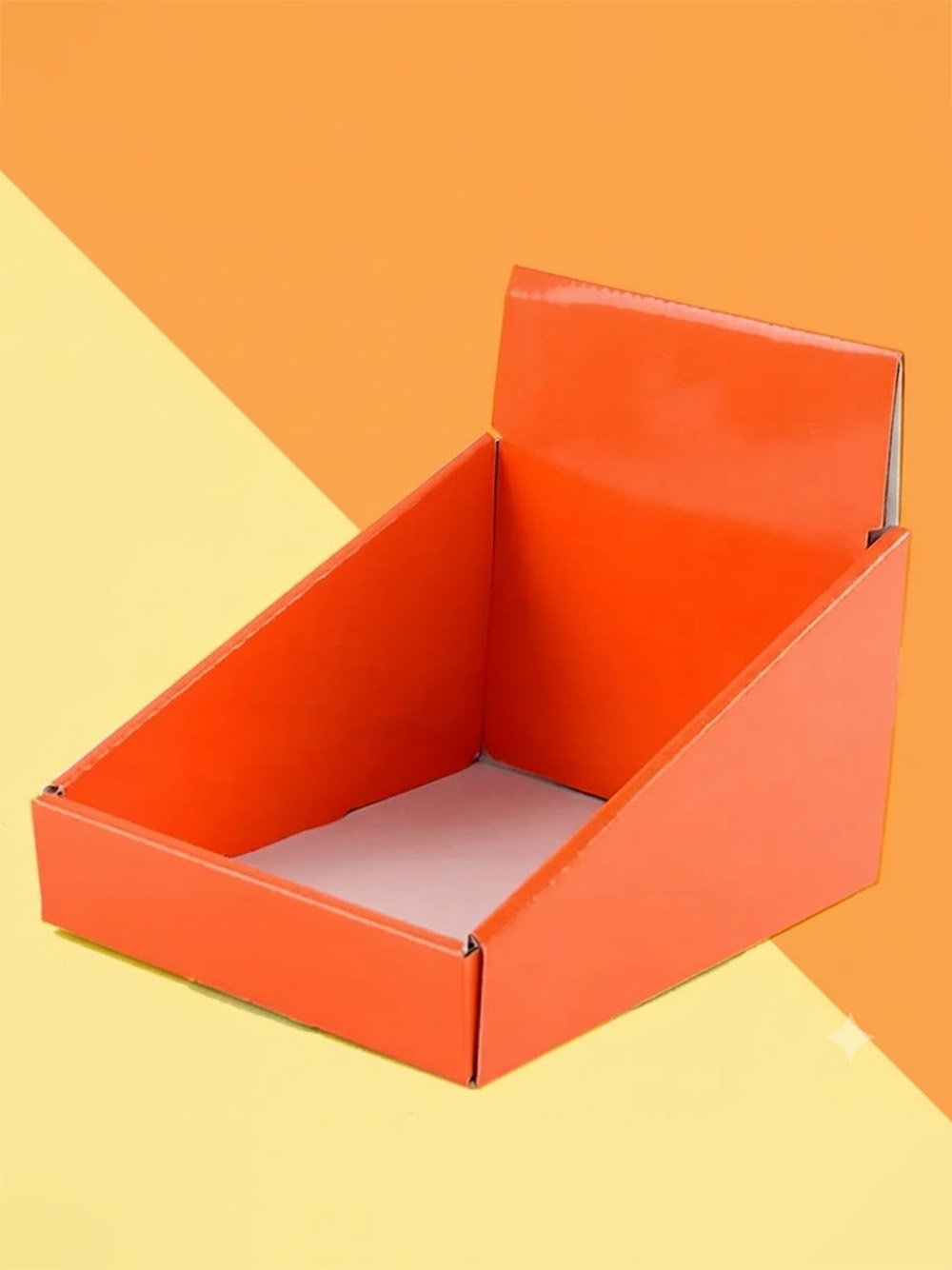

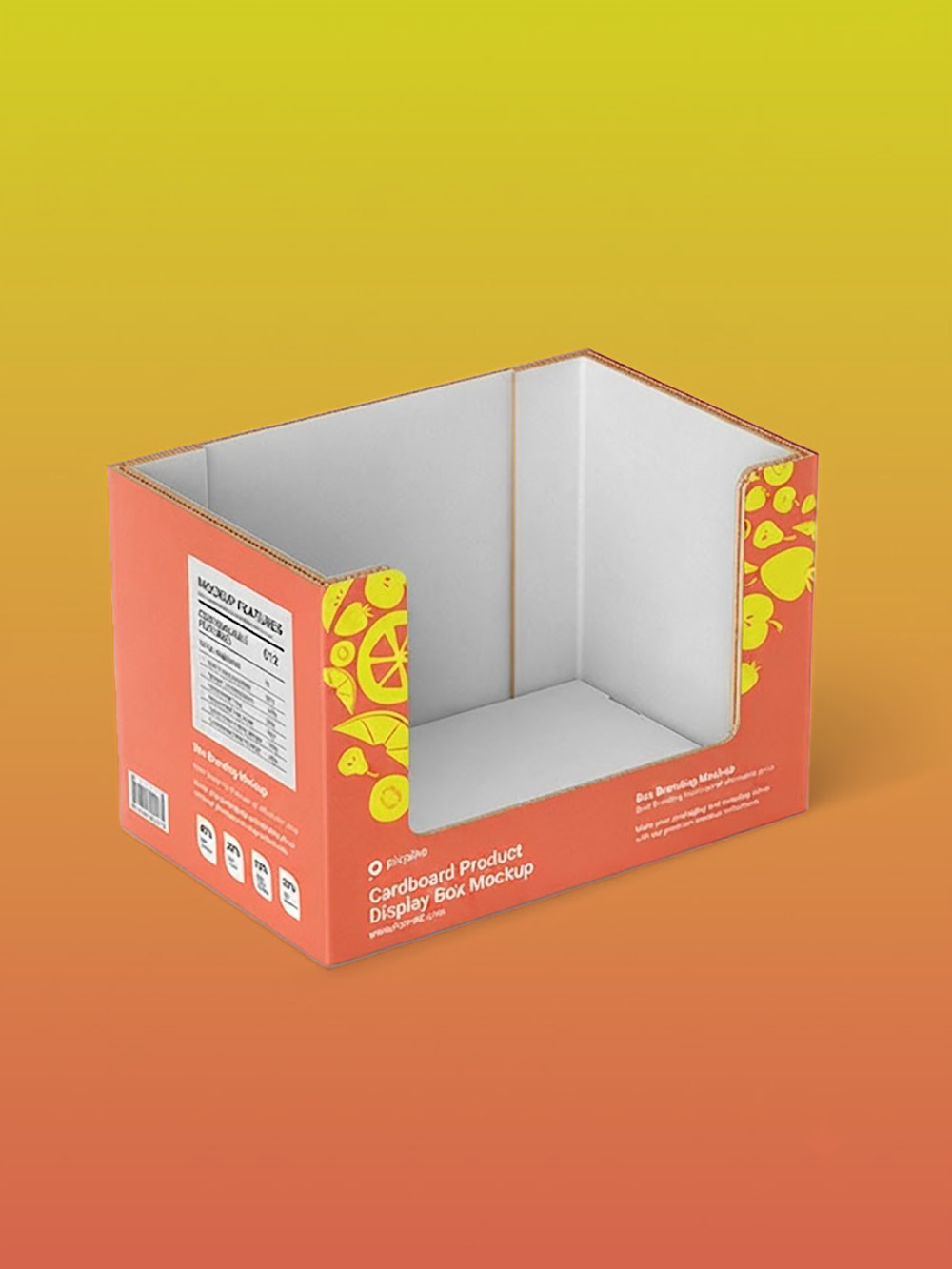

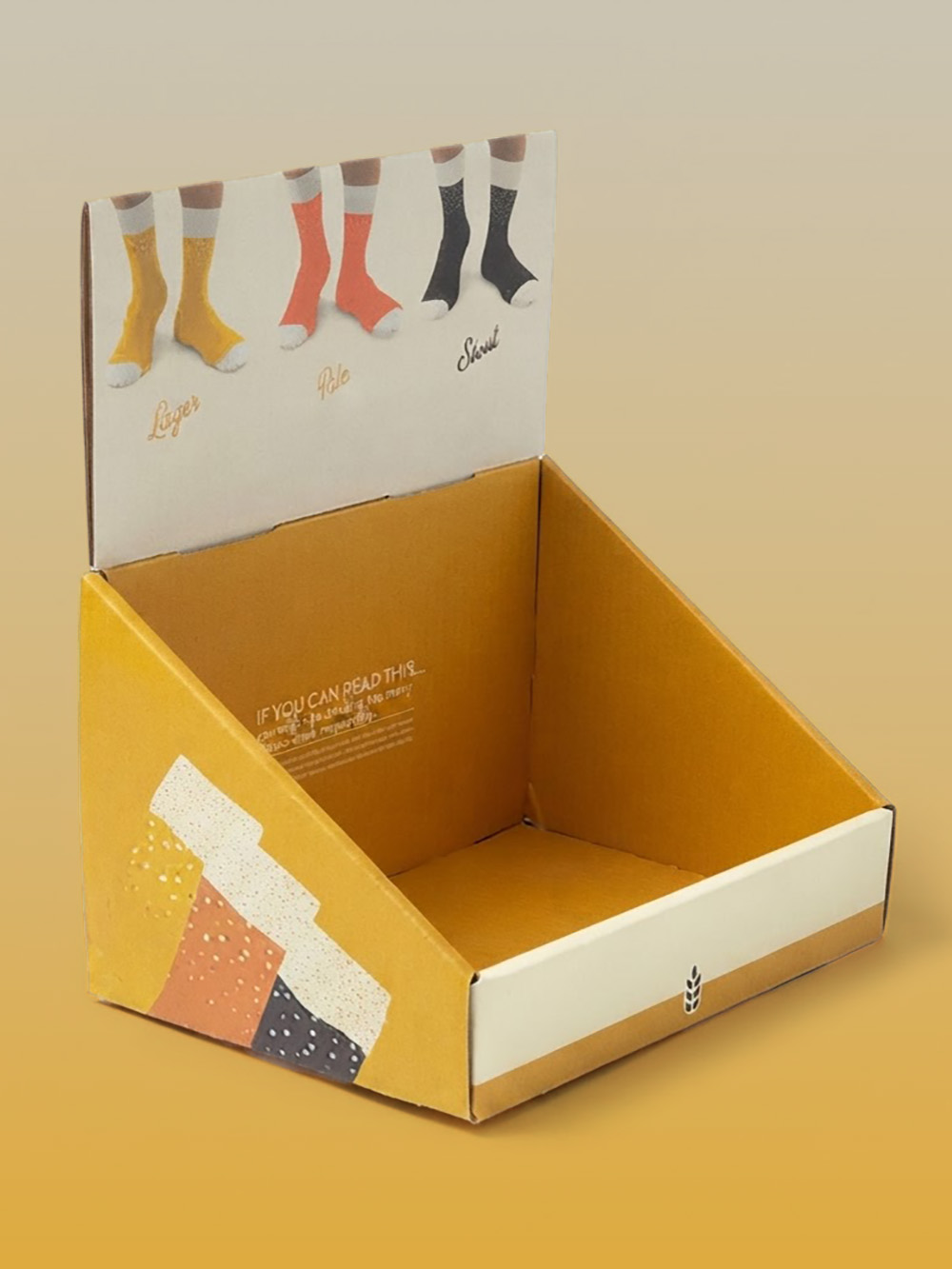

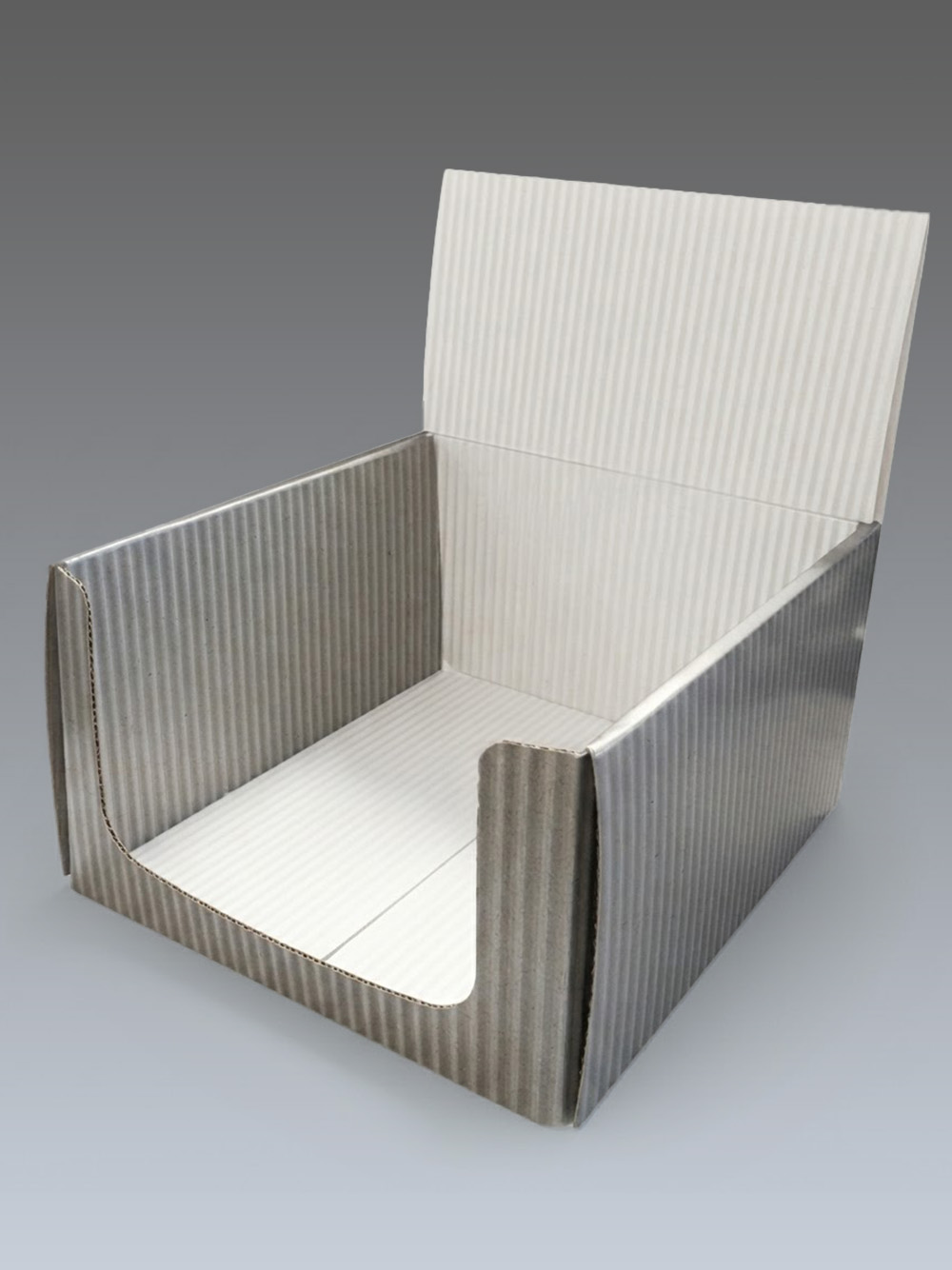

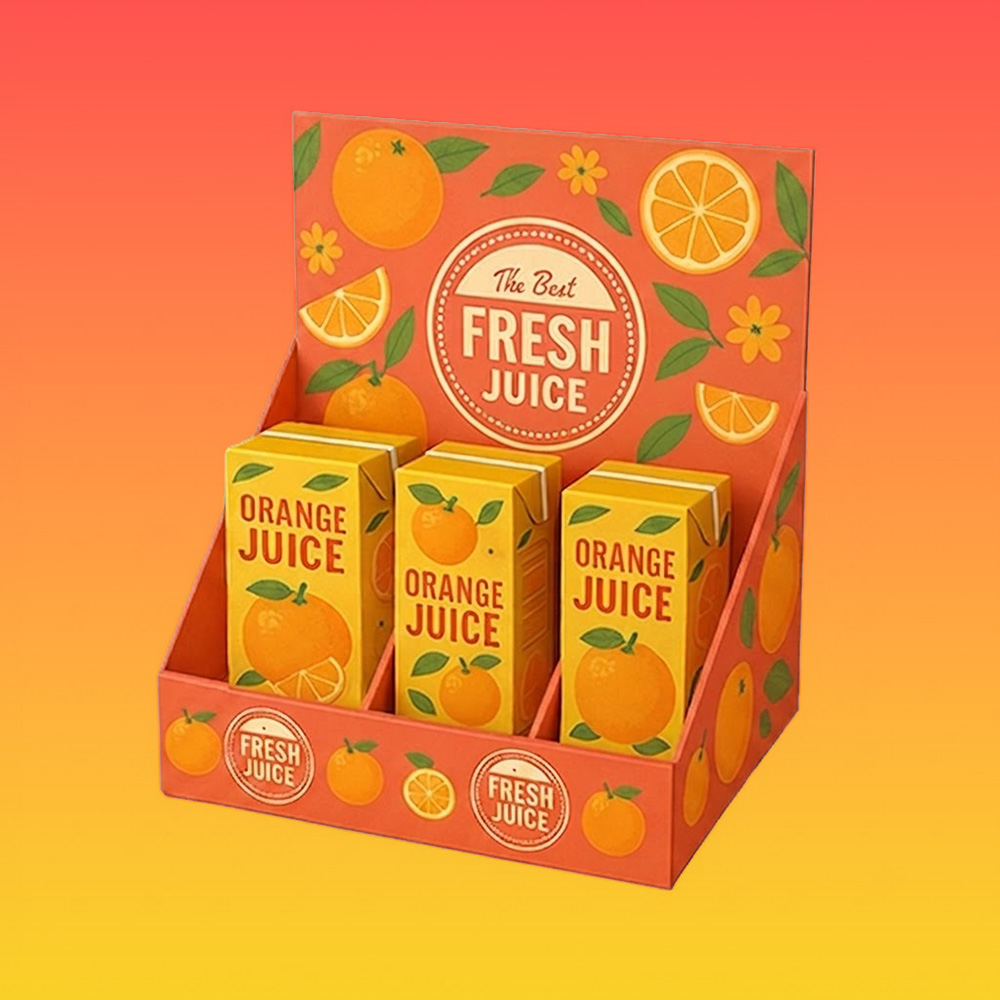

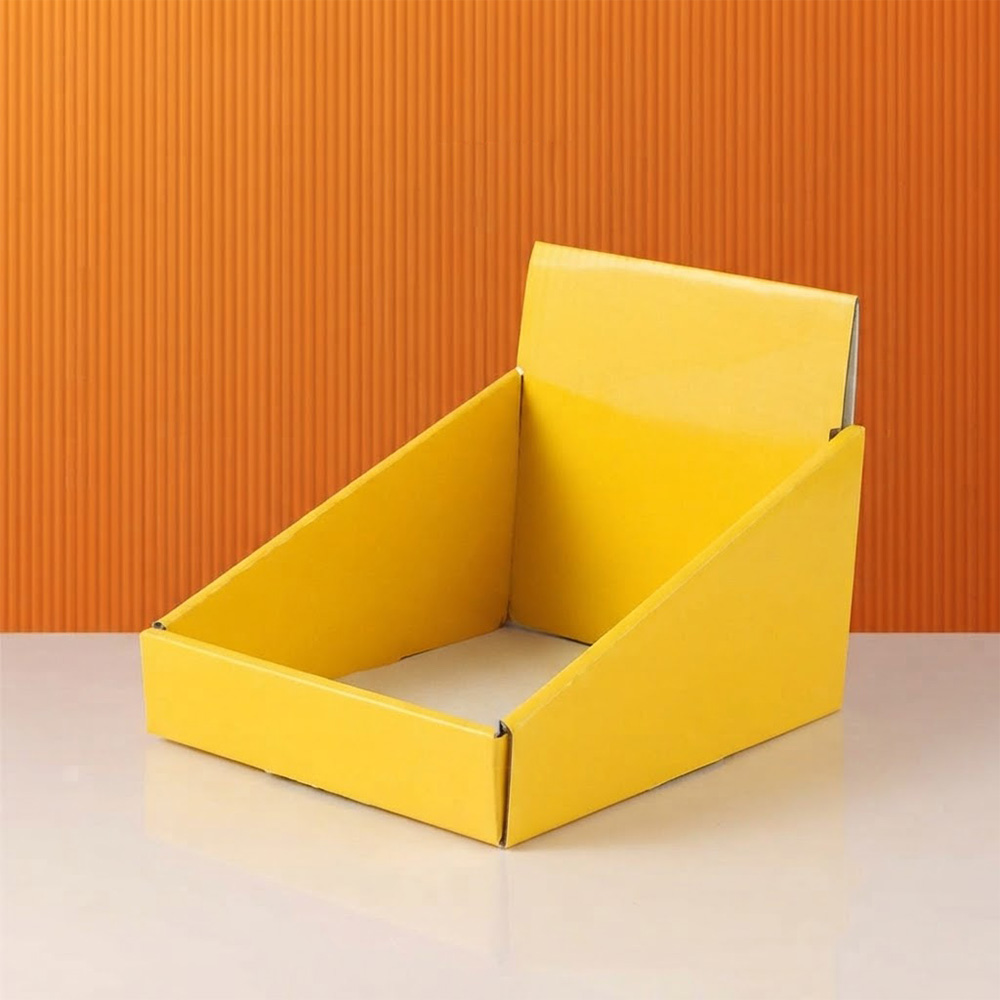

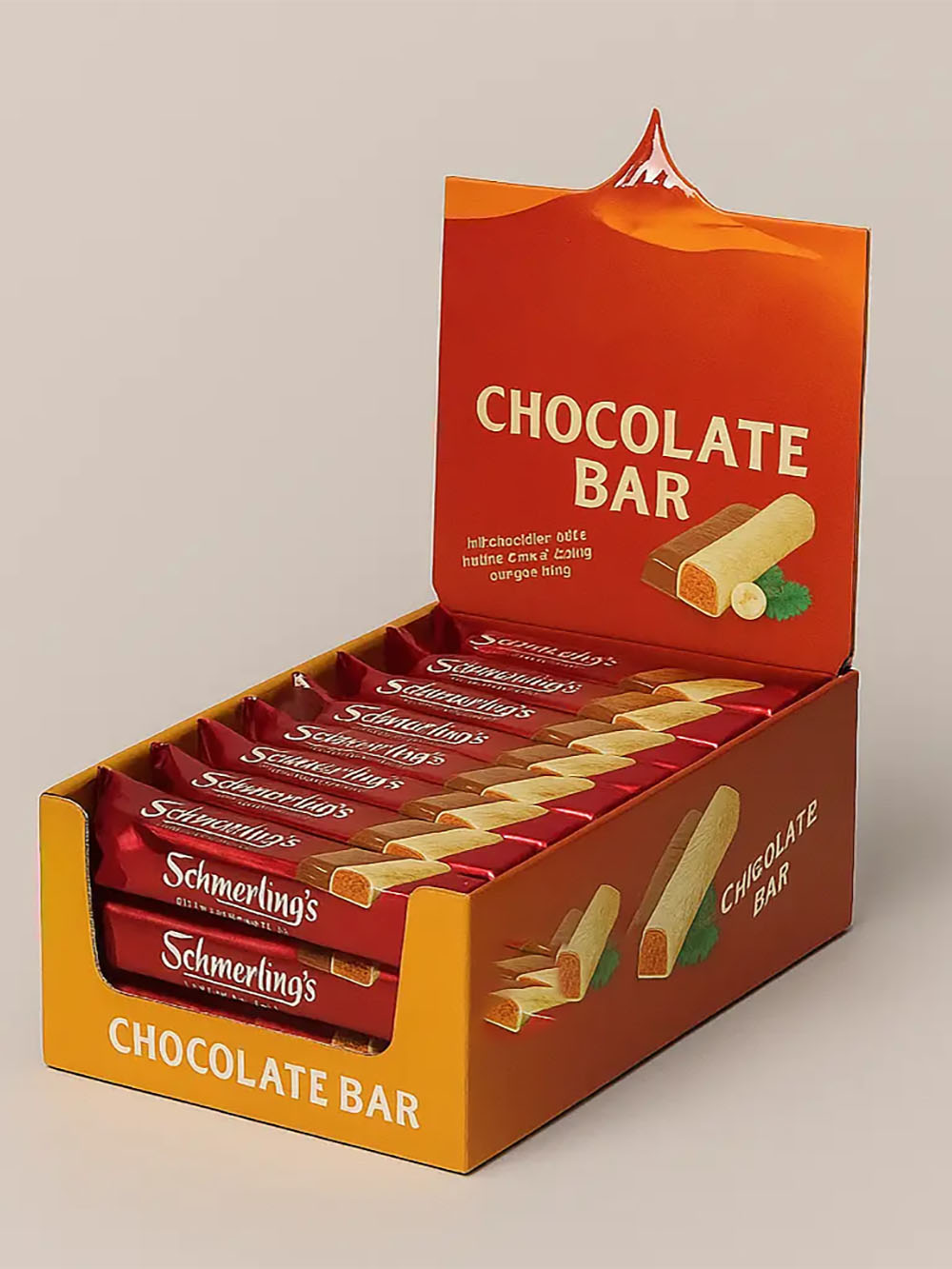

Corrugated Display Boxes Gallery
Corrugated Display Boxes Have to Pass Two Separate Tests
A corrugated display box has to pass two tests. First, it survives freight as a closed carton. Second, it works as a retail display box once a store associate opens it. Most failures happen at the handoff between the two. So we treat the closed carton and the opened tray as separate states. Both states get a physical check before the die is cut.
What the Freight Lane Does to a Closed Carton
Freight is rough on a loaded display. A B-flute display box handles heavy or tall loads. An E-flute display box suits lighter products and sharper print. Board grade follows product weight and stack height. We load each prototype to its rated weight, with the tear panel in place, before print approval. Pair it with custom card slab boxes when the master case needs more strength.
- We work stack height back from your pallet plan. The bottom tier of a corrugated shipper display carries every carton above it.
- Corrugated Display Boxes carton with lock tabs takes its worst abuse at the seams. Every glued joint gets a pull check on the first sample.
- Loose units shift and rub in transit. We size the tray and dividers around your actual units. Fragile items may need cardboard or foam inserts instead. That keeps a countertop display box from arriving scuffed.
The Tear Line: Where the Corrugated Display Boxes Change Jobs
The tear line is the weakest point on a tear-away display box. It must hold through freight and still open by hand in the store. When it does not, associates reach for box cutters. Every production run gets a hand-tear test before it ships. The perforation rule sits in the same die as the structure, as with our custom diamond-painting kit boxes. Two runs of one tray showed why. The second had a shallower perforation on one side. Stores reached for cutters and nicked the header card.
A New York bakery has reordered corrugated display boxes for four holiday seasons. Each season brings a new printed design. Customers now spot the displays before they see the logo.

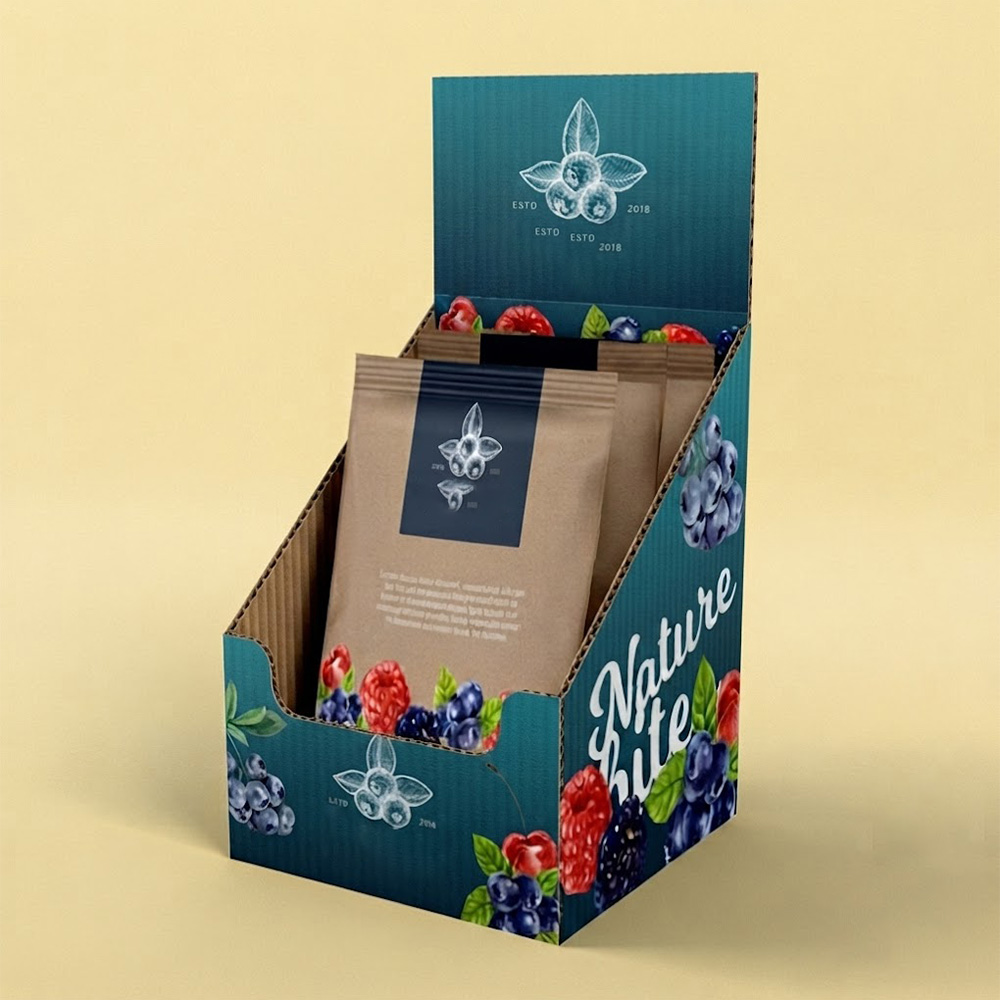

The Open Tray on the Sales Floor

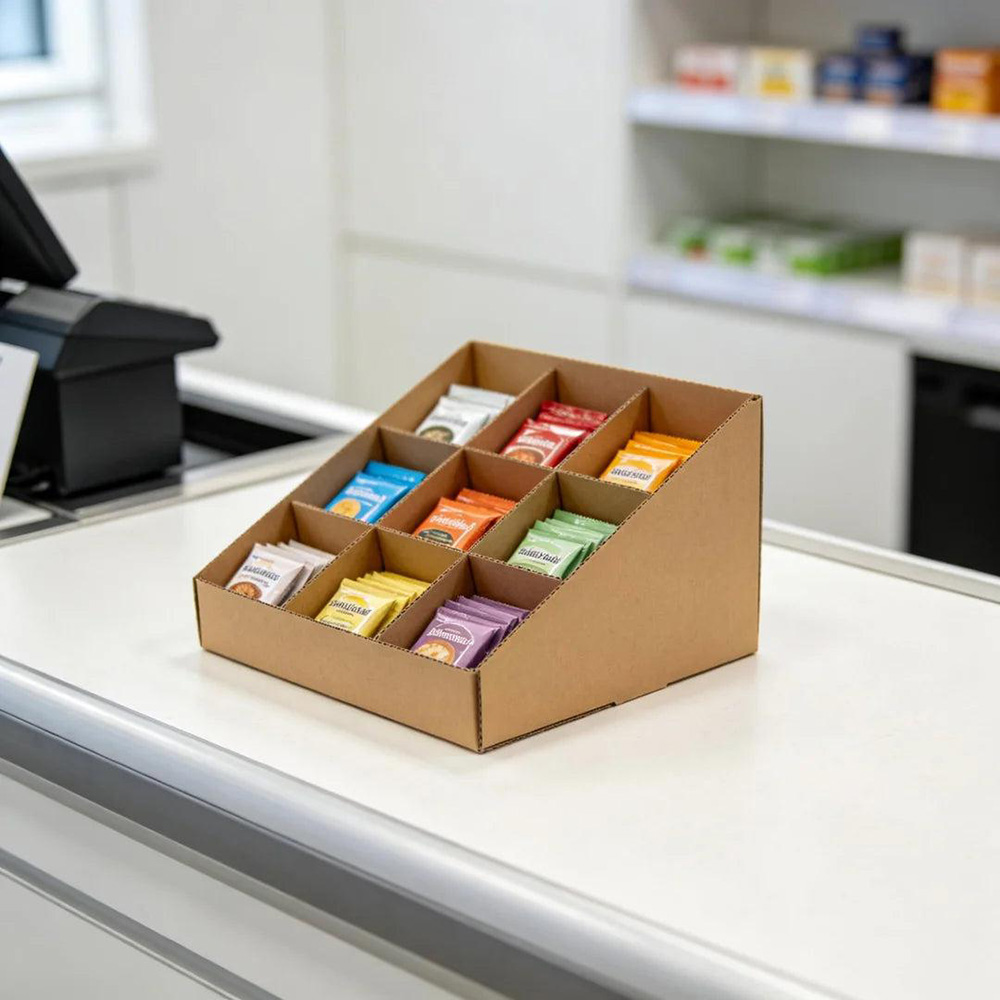

Once the panel tears away, the box become corrugated display boxes tray. It must stand steady and hold the product forward. The front lip height determines how much shoppers can see and reach. The torn edge should be clean, with no ragged fibres. We check the opened tray in its own state, with product loaded. A corrugated counter display box at the register needs a different footprint from a shelf tray. Get the retailer’s pack-out spec before the dieline is set. Our cardboard display boxes cover the checkout side. Full-color graphics print best on E-flute, so custom printed corrugated boxes suit most counter units.
- Product should slide forward as units are pulled. We test each tray full and half empty. That keeps shelf-ready packaging looking stocked as it sells.
- We keep a clear zone on the front lip for price strips and labels. A corrugated shelf tray then does not cover a barcode or promo tag.
How Hale Path Packaging Builds Custom Corrugated Display Boxes to Retailer Rules
Start with your retailer’s packout and shelf-ready guidelines. These set the size, weight, and layout the display must follow. We construct the dieline, which is the flat box template, to those exact numbers. Runs start at 100 units. They import 7 to 14 business days after proof approval. We explain the custom model kit packaging before you commit. We also load every sample and take it apart to check the build before you see it. Small test runs and larger orders get the same checks.
Explore our related packaging products:
Frequently Asked Questions
What are corrugated display boxes?
They are corrugated cartons that ship product and then act as the display. A perforated panel tears away in the store. The box becomes a PDQ tray, counter unit, or floor stand. Each dieline is drawn around your product and the retailer's spec.
What does a tear-away perforation do?
It is a row of small cuts that holds during freight and opens by hand. The ratio of cut to uncut sections sets how easily it tears. We tune that ratio to the board and flute. A good perforated display carton opens without tools.
Is B-flute or E-flute better for a display box?
Choose E-flute for lighter products and sharper print. Choose B-flute for heavier loads and taller stacks. B-flute also resists crushing better. We confirm the grade against a loaded prototype. That keeps a corrugated display tray from sagging on the shelf.
How is a PDQ tray separate from a floor display?
A PDQ tray is small and standard at the register or on a stand. A floor display is freestanding and holds far more stock. Each needs its own board grade and footprint. We size the base to the fixture, not the reverse. A corrugated pallet display adds pallet limits on top.
How do I match the Corrugated Display Boxes to a retailer's shelf?
Get the shelf width, depth and height from the buyer. Ask for facings, front-lip rules and any label zones. Do not estimate from a store photo. The dieline is built from the retailer's numbers. Our guide to planogram-ready cardboard displays explains how fixture specs drive case size.
What should I send to get a quote?
Send product dimensions, weight and units per display. Add the retailer's pack-out spec if you have one. Say how many displays you need. A quick review of these details sets the board grade. A display box with header card also needs your artwork.
Do big box retailers in the US have their own display rules?
Major chains print shelf ready and packout guidelines for vendors, and the rules vary by chain. Obtain the current version before design starts. We build to the spec you supply. Buyers may also test how the display opens on the sales floor.
Are corrugated display boxes recyclable in the US?
Yes. We keep coatings minimal on displays meant for the recycling bin. Some states also apply packaging EPR rules, so read our state EPR packaging laws guide for your markets.
